Haltian NANO Tag

Overview

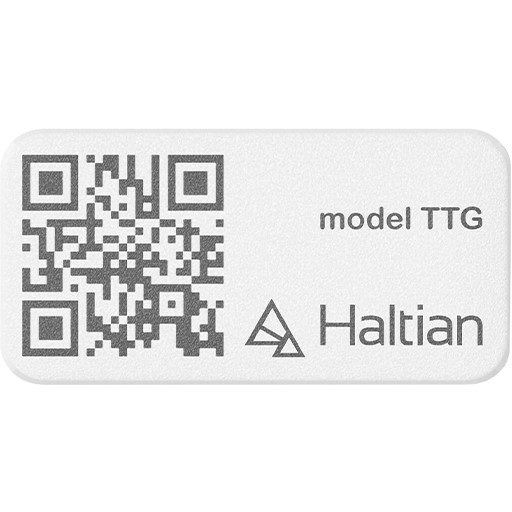

Haltian NANO Tag is the world’s smallest smart asset tag designed for large-scale indoor deployments in warehouses, production lines, and office logistics. These wireless tags attach to objects or assets to digitally track their real-time location via Wirepas mesh networks.

The tag communicates with Haltian EH Locators using Wirepas 5.2 Direct Advertisement (DA) protocol, ensuring reliable and secure communication with multi-year battery life.

Key Features

• Ultra-compact design - 25.4 × 12.7 × 7.2 mm (≈ 1.0" × 0.5" × 0.28")
• Lightweight - Only 3 grams
• Long battery life - Up to 5 years in typical scenarios
• Motion-aware - Integrated accelerometer for smart reporting
• Wirepas DA protocol - Reliable BLE mesh communication
• Indoor rated - IP40 for indoor use
• Temperature range - 0°C to +50°C operating

Primary Use Cases

Warehouse Inventory & Material Flow

• Periodic presence updates for pallets, bins, and containers
• Movement events for tools and equipment
• Work-in-progress tracking on production lines

Office/Logistics Micro-Assets

• Lightweight items where small size matters
• Low visual footprint requirements
• Shared equipment tracking

Healthcare & Facilities

• Medical equipment location
• Wheelchair and bed tracking
• Portable device management

Documentation

• Installation - Activate and mount the tag
• Operation - Reporting modes, default configuration, and data access
• Specifications - Physical, environmental, and electrical specifications
• Troubleshooting - Resolve reporting, position, and battery issues
