Specifications

Technical specifications for the Haltian EH Locator including dimensions, electrical characteristics, environmental ratings, certifications, and device identification.

Physical Characteristics

SpecificationValue
Dimensions142.4 mm × 90.4 mm × 12.4 mm (5.6" × 3.6" × 0.5")
Weight138g / 4.86 oz (158g / 5.57 oz with bracket)
IP RatingIP40 (indoor use only)
UsageIndoor use only

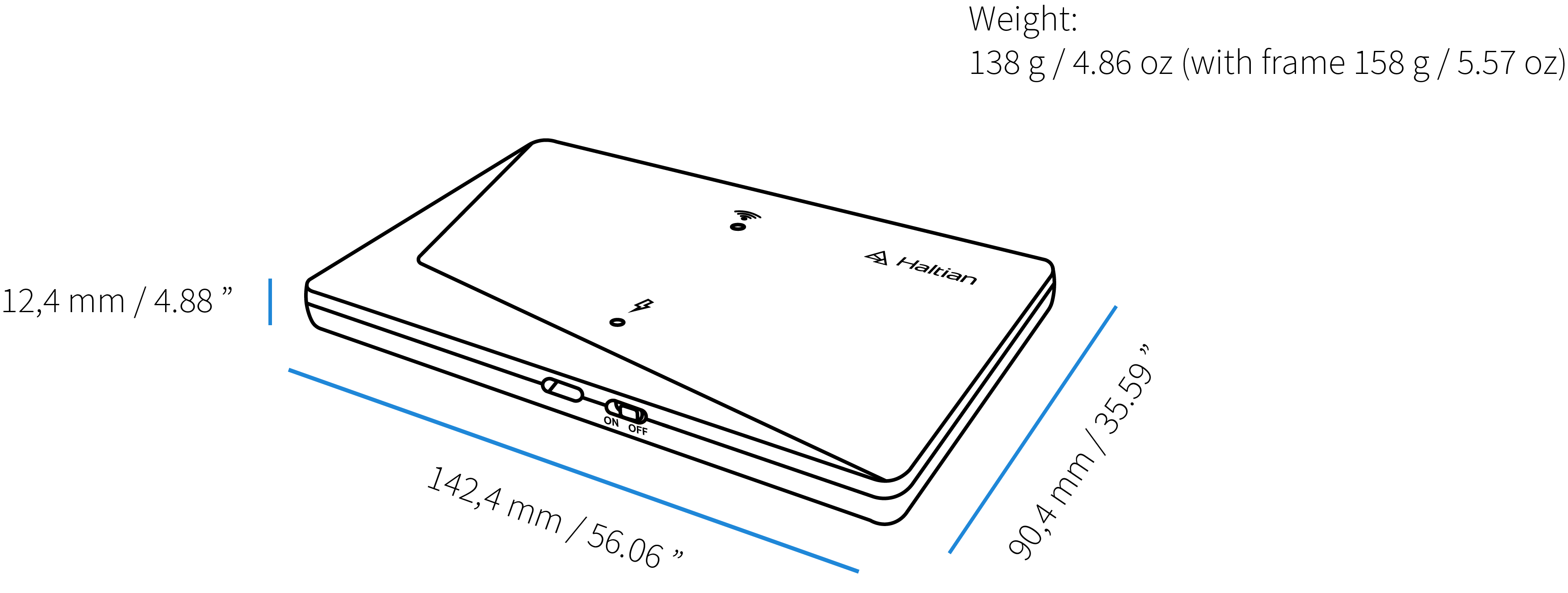

Haltian EH Locator dimensions and measurements

Electrical

SpecificationValue
BatteryLi-ion 1,850 mAh
Power InputUSB-C 5V (or PoE-USB-C adapter)
Energy HarvestingIntegrated solar panel (indoor/outdoor light)
Max TX Power+4 dBm

Battery Life

Operating ModeBattery Life (no external power)
Router ModeUp to 10 days (fully charged battery)
Beacon ModeUp to 4 years (fully charged battery)

Environmental

SpecificationValue
Operating Temperature0°C to +50°C (recommended)
Storage Temperature0°C to +50°C
Operating Humidity15% – 85% RH (non-condensing)
Storage Humidity15% – 85% RH (non-condensing)

Network

SpecificationValue
Wireless ProtocolWirepas Mesh 5.2+
Device Modelcom.haltian.device.tsrb01
Operating ModesRouter / Beacon (configurable via Haltian Field)
Beacon Interval1 second
Sensors IncludedTemperature, Accelerometer

Device Identification

Each Haltian EH Locator has:

  • QR Code — Located on the device for quick identification and provisioning
  • Device Model — com.haltian.device.tsrb01
  • TUID — Unique device identifier

Certifications

  • CE (European Conformity)
  • UKCA (UK Conformity Assessed)
  • WEEE compliance (proper disposal required)

Safety

  • Electrical Safety — Only use approved 5V USB-C power adapters
  • RF Exposure — Device operates at +4 dBm max TX power (well below safety limits)
  • Disposal — Follow WEEE guidelines for electronic waste disposal
  • Fire Safety — Do not install near heat sources exceeding +50°C
