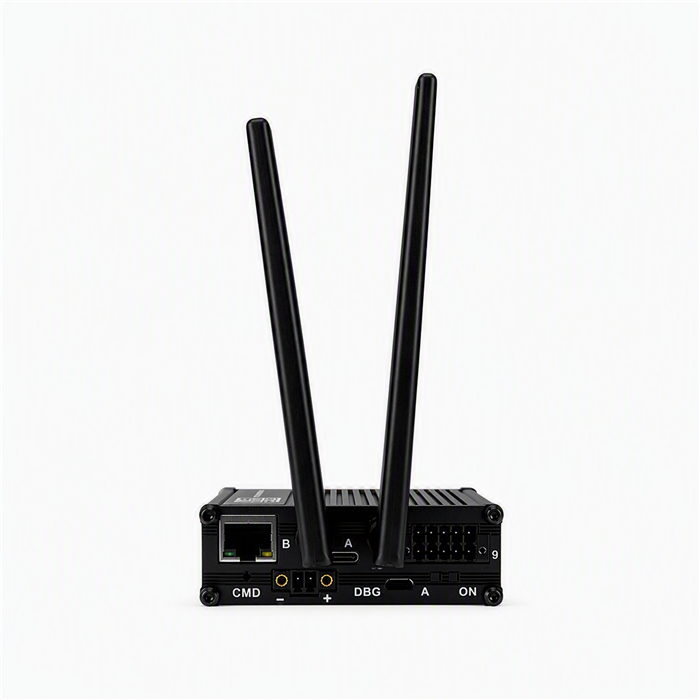

Haltian Gateway XS

Compact, cost-efficient IoT gateway with pre-configured cellular and 2.4 GHz radio connectivity

Overview

The Haltian Gateway XS is a compact, high-performance edge gateway designed to connect, manage, and secure IoT devices in smart environments. Built on proven CThings hardware and enhanced with Haltian’s software platform, Gateway XS provides a reliable bridge between field devices and cloud-based IoT services.

Optimized for large-scale and cost-sensitive deployments, Gateway XS delivers seamless connectivity, robust security, and full integration with the Haltian IoT ecosystem.

Haltian Gateway XS

Key Features

Indoor use only: Designed for indoor environments — not ruggedized for outdoor installation
Secure by design: NXP EdgeLock Secure Enclave and Arm OP-TEE-based trusted execution, plus Haltian secure firmware architecture, ensure trusted device operation
Flexible backhaul: Uses either cellular (LTE Cat1bis) or wired LAN for cloud connectivity, with Wirepas Mesh for sensor communication
HIoT platform integration: Native support for device management, MQTT data streaming, and GraphQL APIs

Typical Use Cases

Smart buildings and workplaces
Facility management and maintenance
Indoor environmental monitoring
Asset tracking and sensor networks
Industrial IoT deployments

Quick Start

Install and mount — Physical setup, power connection, and antenna installation
Configure connectivity — Verify the cellular connection and name the gateway
Deploy Wirepas Mesh sensor network — Position gateway for optimal sensor coverage
Monitor performance — Check network status and diagnostics

For an overview of the available backhaul options, see LAN Access and the FAQ.
