Installation guide for Thingsee POWERCOVER accessory
Thingsee POWERCOVER
Power supply accessory for extending the battery life of selected Thingsee sensors
Overview
Thingsee POWERCOVER (TSPC01) is a power supply accessory for selected Thingsee sensor devices. It extends battery life up to 10 years using 3× AA lithium batteries, making it ideal for installations in hard-to-reach locations such as high ceilings where battery changes are impractical.
POWERCOVER also supports micro-USB power for continuous, unlimited operation. When USB power is available, the device automatically prefers it over battery power and switches back to batteries if USB power is lost, providing extra reliability during power outages.
Key Features
- Extended battery life — Up to 10 years with 3× AA lithium batteries
- Dual power source — Battery and micro-USB (5V / 500mA)
- Automatic power switching — Prefers USB when available, falls back to battery on power loss
- Snap-on mounting — Sensor attaches directly on top of POWERCOVER
- Easy installation — Double-sided tape or optional screw mount
Compatible Sensors
Thingsee POWERCOVER works with the following Thingsee sensor devices:
- Thingsee PRESENCE (Thingsee PRESENCE Longlife)
- Thingsee ENVIRONMENT (Thingsee ENVIRONMENT Longlife)
- Thingsee DISTANCE
Specifications
| Parameter | Value |
|---|---|
| Product type | Accessory |
| Model code | TSPC01 |

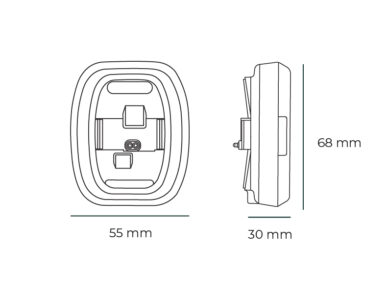

| Dimensions (L × W × H) | 68 mm × 55 mm × 30 mm |
| Weight | 100 g |
| Battery | 3× AA lithium primary (replaceable, non-chargeable) |
| Expected battery life | Up to 10 years |
| USB power | Micro-USB, 5V ± 5% / 500 mA |
| Operating temperature | -20°C to +50°C |
| Operating humidity | 0% to 100% RH (non-condensing) |
| Storage temperature | +5°C to +25°C |
| Storage humidity | 45% to 85% RH (non-condensing) |
| IP rating | IP40 |
| Certifications | CE, FCC, ISED, UKCA, RoHS, NOM + NYCE, IFT |
