Thingsee PRESENCE

Overview

Thingsee PRESENCE is a wireless sensor for measuring people presence throughout your facility. The sensor uses passive infrared (PIR) technology to detect heat source movement (human, animal, etc.) in an area and reports the indicative count of detections to the cloud.

The device supports two distinct operating modes:

• Visitor Counting Mode - Counts movements for traffic analysis
• Occupancy Mode - Detects workspace or area occupancy status

Thingsee PRESENCE connects via Wirepas Mesh network and requires a Wirepas-enabled gateway for cloud communication.

Quick Start

1. Installation - Mount sensor and install accessories
2. Operation - Understand operating modes and messages
3. Configuration - Configure sensor behavior
4. Troubleshooting - Resolve common issues

Key Features

Sensing and Detection

• PIR-based detection - Privacy-friendly passive infrared technology
• Dual mode operation - Occupancy or visitor counting modes
• 34 movements per minute - Maximum detection rate regardless of direction or distance
• Adjustable sensitivity - Configure for different installation scenarios
• Height-dependent detection - Cone-shaped detection area adapts to installation height

Power and Battery

• Long battery life - Up to 4 years with standard firmware
• 2x AAA batteries - Replaceable alkaline batteries
• LED confirmation - Optional visual feedback for installation verification

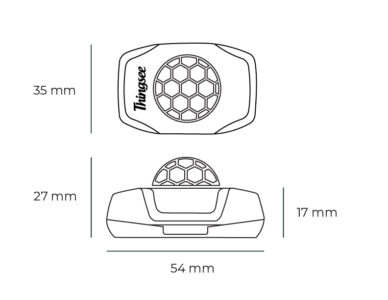

Physical

• Lightweight - 37g including batteries
• IP40 rated - Basic dust protection
• Temperature range - -20°C to +50°C operating
• Humidity tolerance - 0-100% RH non-condensing

Connectivity

• Wirepas Mesh - 2.4GHz mesh network
• Radio sensitivity - -95 dBm (BTLE)
• Low-power protocol - Optimized for battery-operated sensors

Compliance

• Wide certifications - CE, FCC, ISED, RoHS, RCM, MIC, UKCA, WPC ETA-SD, IMDA, KC, NOM, NYCE, IFT compliant

Installation Accessories

• Visitor Counter Dome - Narrows detection beam for doorway counting
• Occupancy Dome - Adjusts sensitivity for under-desk installations
• Mounting tape - Adhesive backing for easy installation

Use Cases

Office Environments

• Desk occupancy monitoring - Track workspace utilization for hot-desking
• Meeting room usage - Monitor presence and usage levels
• Break room traffic - Analyze usage patterns
• Space optimization - Optimize space usage based on real data
• Energy savings - Reduce consumption in unoccupied areas

Healthcare Facilities

• Patient room occupancy - Monitor room usage
• Waiting area utilization - Track patient flow
• Corridor traffic monitoring - Identify busy periods
• Staff area usage - Analyze staff facility usage

Retail Spaces

• Customer flow analysis - Identify busiest times
• Department popularity - Track which areas are most used
• Checkout area management - Optimize staffing
• Store entrance counting - Measure foot traffic

Educational Facilities

• Classroom occupancy - Monitor room usage
• Library usage tracking - Analyze space utilization
• Common area monitoring - Track student activity
• Cafeteria traffic analysis - Optimize service timing

Device Identifiers

Thingsee IoT Platform

• IMC (Internal Model Code): TSPR04
• Product family: TSPR (Thingsee PRESENCE)
• Variant index: 04

Haltian IoT Platform

• Device identifier: TBD (reverse URL notation to be added in future documentation update)

Support and Resources

Documentation

• Installation Guide - Complete installation procedures
• Operation Guide - Operating modes and messages
• Configuration Reference - All configuration parameters
• Technical Specifications - Complete technical specs
• Troubleshooting - Common issues and solutions

External Resources

• User Guide PDF - Downloadable user guide
• Video Tutorial - Installation video

Technical Support

• Email: support@haltian.com
• API Documentation: Service API
• Message Decoding: CBOR to JSON Conversion

Related Devices

• Thingsee RADAR - Radar-based occupancy detection for longer ranges
• Thingsee COUNT - Time-of-flight based people counting
• Thingsee ENVIRONMENT - Environmental monitoring with optional motion sensor
