Thingsee ENVIRONMENT

Overview

Thingsee ENVIRONMENT is a versatile, battery-powered wireless IoT sensor designed for comprehensive environmental monitoring across multiple business verticals. Combining six sensor types in one compact device, it provides extensive monitoring capabilities from basic climate control to advanced machine usage tracking.

Key Features

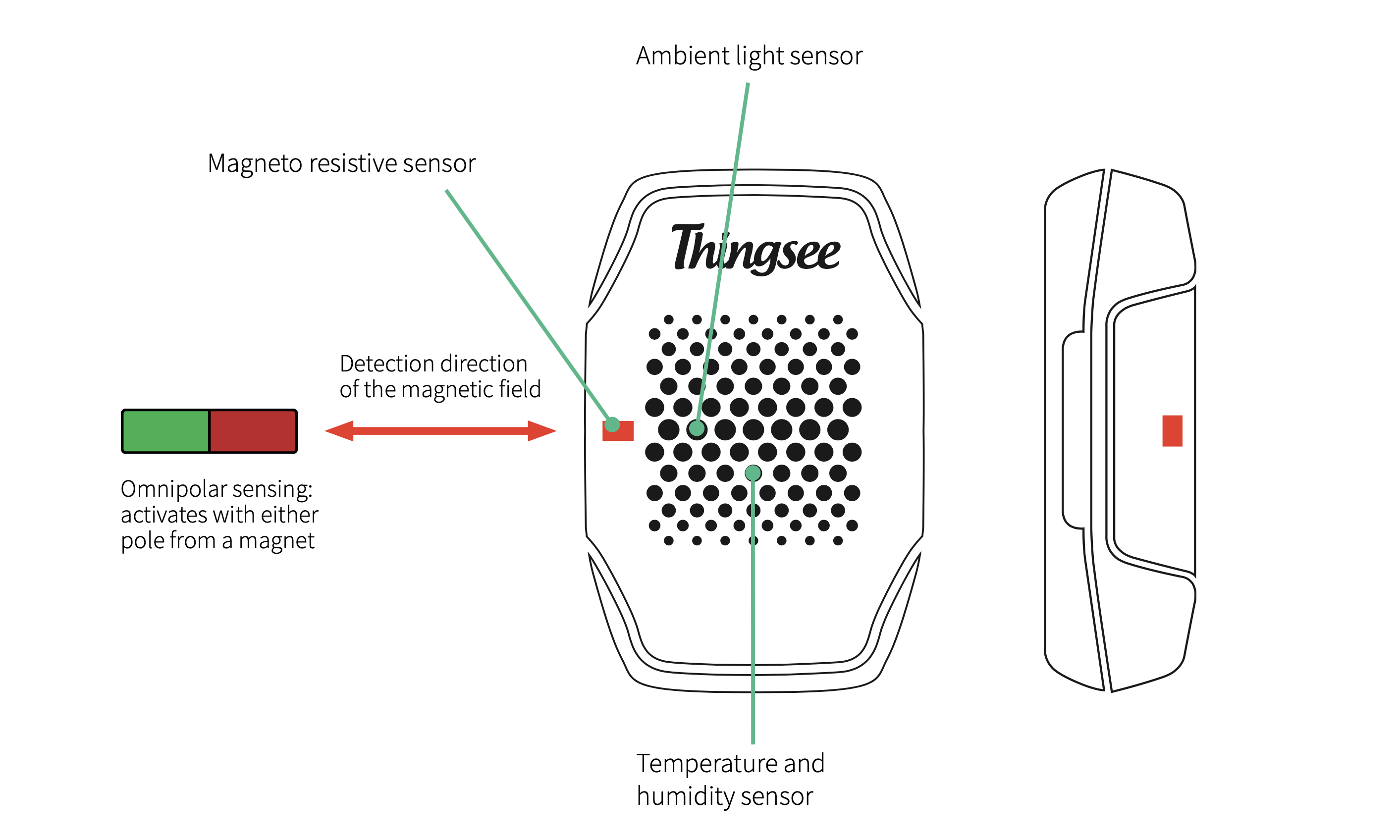

• 6-in-1 sensor - Temperature, humidity, pressure, light, motion, magnetic switch
• Long battery life - Up to 5 years (standard mode), 4 years (Machine Usage Mode)
• Versatile applications - Climate monitoring, door/window status, machine usage, lighting control
• Easy installation - Preconfigured from factory, no on-site setup needed
• Multiple mounting options - Tape, screw, or magnet mount
• Event-driven reporting - Intelligent threshold-based updates
• Wide certifications - CE, FCC, ISED, RoHS, RCM, MIC, UKCA, NOM, NYCE, IFT compliant

Measurement Capabilities

Quick Start

1. Install the sensor - Mount in desired location, insert batteries
2. Verify operation - Check sensor appears in Haltian IoT Studio
3. Monitor data - View measurements and configure alerts
4. Customize settings - Adjust thresholds and reporting (if needed)

Primary Use Cases

Building Management

• Climate Monitoring - Temperature and humidity tracking for comfort and efficiency
• Door/Window Status - Security monitoring and climate control optimization
• Occupancy Detection - Infer presence via ambient light changes
• Energy Optimization - Coordinate HVAC with actual conditions

Industrial Applications

• Machine Usage Tracking - Vibration-based operation detection at 50Hz sampling
• Predictive Maintenance - Usage pattern analysis for service scheduling
• Environmental Control - Production area climate monitoring
• Equipment Security - Movement or position change detection

Security and Access Control

• Intrusion Detection - Door and window opening alerts
• Environmental Tampering - Unexpected position or vibration changes
• Multi-factor Alerts - Combine sensors for intelligent event detection

Energy Management

• Lighting Usage - Track when lights are on/off via ambient light sensor
• HVAC Optimization - Temperature-based system control
• Occupancy-Based Control - Reduce energy in unoccupied spaces

Operating Modes

Standard Mode (Default)

Best for: Climate monitoring, door/window status, general environmental tracking

• Measurement interval: Every 5 minutes
• Reporting: Event-based (threshold changes) + 1-hour heartbeat
• Battery life: Up to 5 years
• Applications: Most use cases

Machine Usage Mode

Best for: Industrial equipment monitoring, vibration-based usage detection

• Measurement frequency: 50Hz (high-speed sampling)
• Reporting interval: 1 minute (when activity detected)
• Vibration range: 128mG - 8G/16G
• Battery life: Up to 4 years
• Applications: Manufacturing equipment, pumps, motors, conveyors

Configuration: Contact support@haltian.com to enable Machine Usage Mode

Technical Highlights

Environmental Specifications

• Operating range: -20°C to +50°C, 0-100% RH non-condensing
• IP rating: IP30 (indoor use)
• Certifications: Global compliance (CE, FCC, ISED, RCM, MIC, UKCA, NOM, NYCE, IFT)

Power and Connectivity

• Battery: 2x AAA replaceable alkaline batteries
• Network: Wirepas Mesh 2.4 GHz
• Range: 20-40m indoor (line of sight: up to 100m)

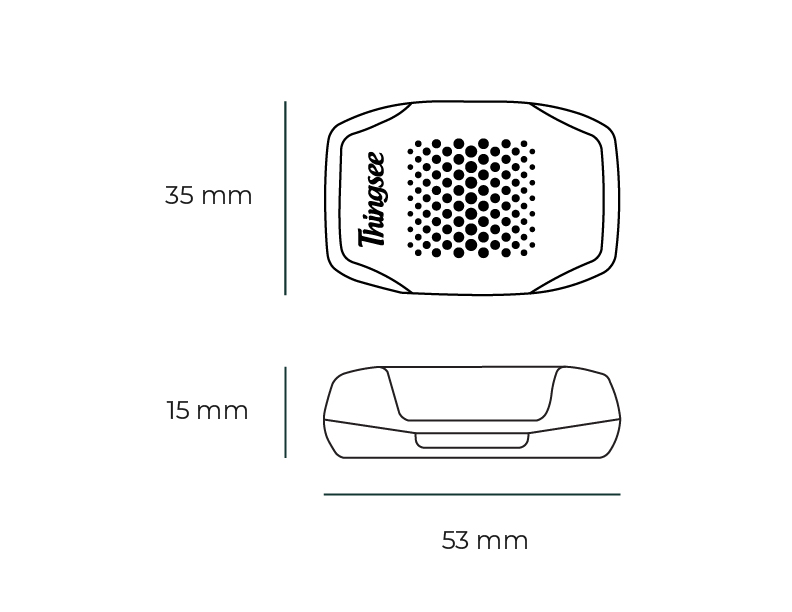

Physical

• Weight: 35g (including batteries)
• Mounting: Adhesive tape, screw mount, or magnet

What’s Included

• 1x Thingsee ENVIRONMENT sensor
• 2x AAA alkaline batteries (pre-installed or separate)
• 1x Opening key
• 1x Quick start guide
• Optional: Mounting accessories (tape, screws, or magnet)

Documentation

• Installation Guide - Physical setup, mounting methods, battery installation
• Operation Guide - Daily monitoring, data interpretation, mode selection
• Configuration Guide - Threshold customization, mode switching, parameter tuning
• Specifications - Complete technical details, certifications, compliance
• Troubleshooting - Common issues, diagnostics, solutions

Application Examples

Example 1: Office Climate Monitoring

• Temperature and humidity tracking for comfort
• Light sensor for occupancy inference
• Pressure for weather pattern correlation
• Result: Optimized HVAC scheduling, energy savings

Example 2: Cold Storage Monitoring

• Temperature alerts for threshold violations
• Humidity tracking for condensation prevention
• Door status via magnetic switch (refrigerator door)
• Result: Product safety, compliance documentation

Example 3: Manufacturing Equipment Usage

• Machine Usage Mode enabled
• Vibration detection at 50Hz
• Track equipment runtime and idle periods
• Result: Predictive maintenance, usage-based planning

Example 4: Security and Access Control

• Magnetic switch on doors/windows
• Motion detection via accelerometer
• Light changes indicate occupancy
• Temperature anomalies (windows left open)
• Result: Comprehensive security monitoring

Support

For assistance with Thingsee ENVIRONMENT:

• Email: support@haltian.com
• Documentation: Review guides in this section
• Machine Usage Mode: Contact support to enable
• Custom configurations: Support can assist with specific use cases

Next Steps:

1. Read the Installation Guide to get started
2. Review Operation Guide for monitoring and data interpretation
3. See Configuration Guide for customization options
