Thingsee AIR

Indoor air quality sensor with CO₂, TVOC, temperature, humidity, and pressure monitoring

Overview

Thingsee AIR is a battery-powered wireless IoT sensor designed for comprehensive indoor air quality (IAQ) monitoring. It measures CO₂, TVOC, temperature, humidity, and barometric pressure, providing real-time data to optimize ventilation, HVAC efficiency, and occupant comfort.

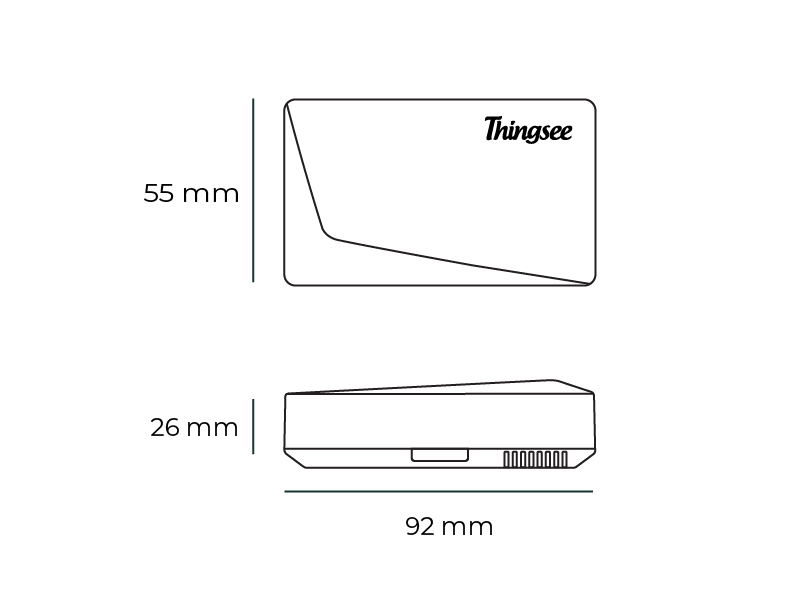

Thingsee AIR measurements

The sensor uses intelligent event-based reporting to minimize power consumption while ensuring critical air quality changes are captured immediately. With up to 4 years of battery life, it’s ideal for large-scale deployments across office buildings, schools, healthcare facilities, and retail spaces.

Key Features

Comprehensive IAQ Monitoring: CO₂, TVOC, temperature, humidity, barometric pressure
Long Battery Life: Up to 4 years with 5-minute reporting interval
Event-Based Reporting: Intelligent threshold detection minimizes unnecessary transmissions
Wirepas Mesh Network: Reliable wireless connectivity, multi-hop routing
Easy Installation: Battery-powered, wall-mountable, no wiring required
Wide Certifications: CE, FCC, ISED, RoHS, RCM, MIC, UKCA, and more

Quick Start

Install sensor - Mount on wall at breathing height (1.2-1.8m)
Insert batteries - 2x AA alkaline batteries
Verify operation - Allow 24-48 hours for CO₂ baseline
Monitor data - View readings in Haltian IoT Studio

Measurements Overview

Measurement	Range	Accuracy	Event Threshold
CO₂	400-5,000 ppm	±30 ppm or 3%	10 ppm
TVOC	0-18,000 ppb	-	30 ppb
Temperature	+5 to +50°C	±0.2°C	0.5°C
Humidity	0-100% RH	±2% RH	2% RH
Pressure	300-1,200 hPa	±0.002 hPa	20 hPa

Use Cases

Office Environments

Meeting room air quality optimization
Open office ventilation control
Energy-efficient HVAC operation

Educational Facilities

Classroom air quality monitoring
Library and study area optimization
Building-wide IAQ compliance

Healthcare

Patient room monitoring
Waiting area ventilation
Air quality compliance verification

Retail Spaces

Customer comfort optimization
Energy cost reduction through smart HVAC
IAQ standards compliance

Device Identifiers

Thingsee IoT

Internal Model Code (IMC): TBD
Serial Number Format: IMC + PSN (Product Serial Number)

Haltian IoT

Device Model: TBD (reverse URL notation)

Benefits of Air Quality Monitoring

Verify HVAC Performance: Ensure air conditioning systems working correctly
Optimize Energy Use: Reduce unnecessary ventilation during low occupancy
Improve Facility Management: Data-driven decisions for building operations
Enhance Wellbeing: Better air quality improves occupant health and productivity
Reduce Energy Costs: Smart ventilation based on actual air quality needs

Documentation Structure

Installation - Mounting, battery installation, placement guidelines
Operation - Baseline calibration, monitoring, interpretation guidelines
Configuration - Report intervals, thresholds, advanced settings
Specifications - Complete technical specifications
Troubleshooting - Common issues and solutions

Air Quality Reference

CO₂ Level Interpretation

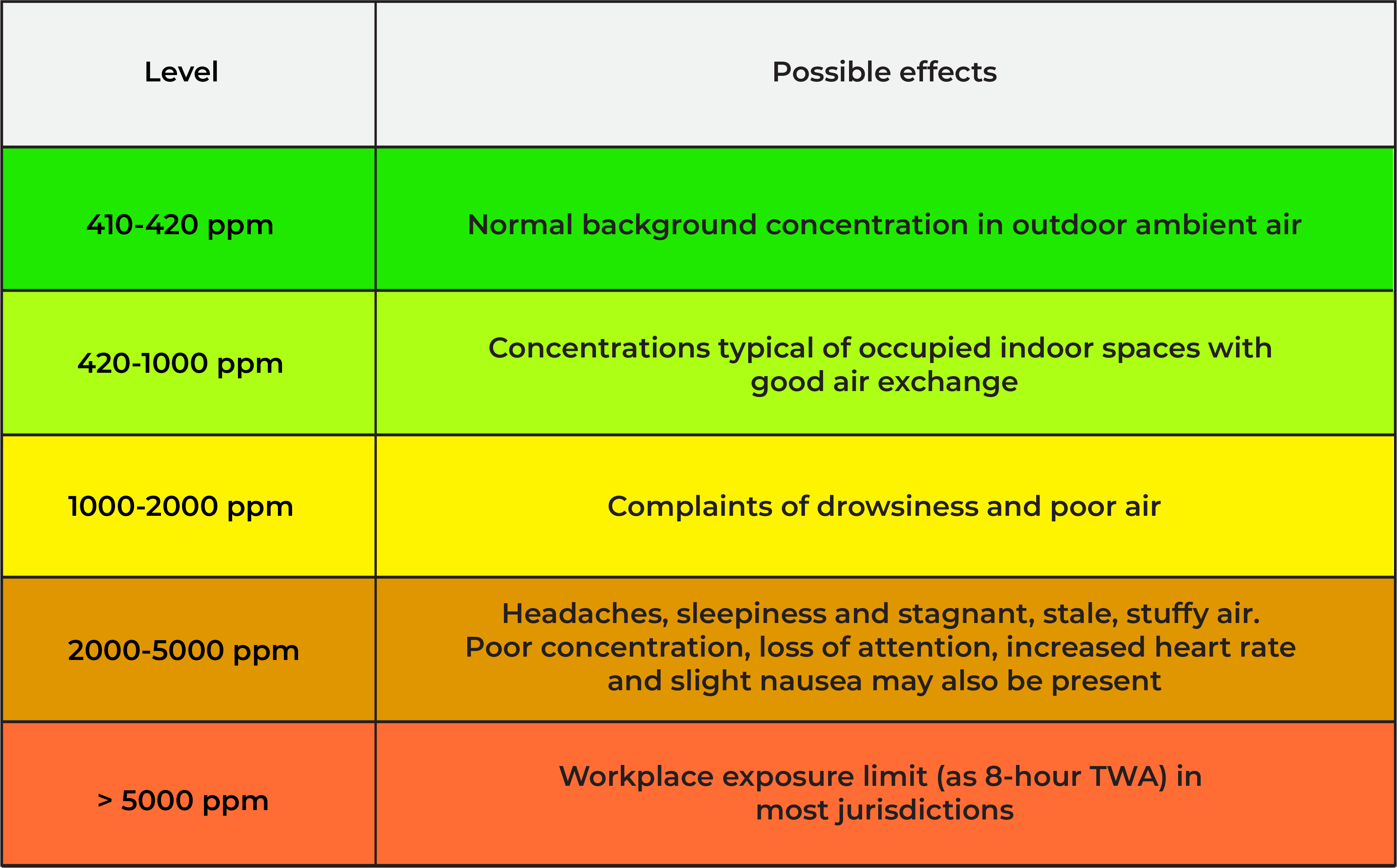

CO₂ reference values

< 800 ppm: Excellent air quality
800-1000 ppm: Good air quality
1000-1500 ppm: Acceptable, consider ventilation improvement
> 1500 ppm: Poor air quality, ventilation required

TVOC Level Interpretation

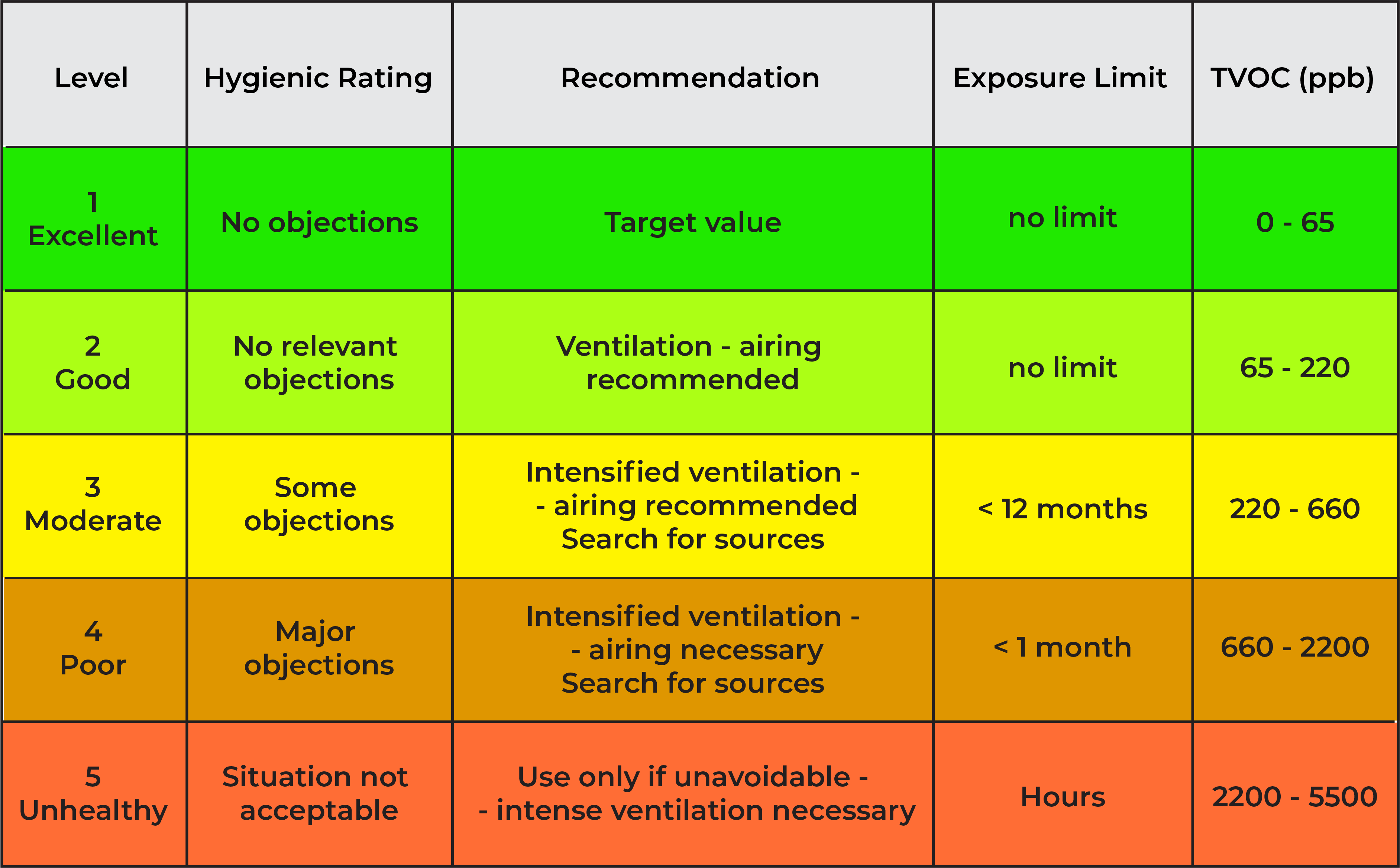

TVOC reference values

< 220 ppb: Excellent air quality
220-660 ppb: Good air quality
660-2200 ppb: Acceptable
> 2200 ppb: Poor air quality, identify sources

Support

For technical assistance:

Email: support@haltian.com
Review How-To Guides for setup procedures
