Haltian RADAR

Overview

Haltian RADAR is a wireless 60GHz pulsed coherent radar sensor designed for reliable vehicle and occupancy detection in parking spaces and loading docks. With adjustable sensing distance (10 cm - 10 m), IP68 waterproof rating, and up to 10-year battery life, it provides cost-effective installation without ground drilling.

Key Features

• 60GHz radar technology - Interference-free, reliable detection
• 10-year battery life - Thionyl chloride lithium battery (non-replaceable)
• Adjustable sensing distance - 10 cm to 10 m (configurable)
• No ground drilling - Easy installation on walls, poles, or ceilings
• MIL-STD-810H tested - Vibration, shock, UV, extreme temperatures
• IP68 waterproof - Fully sealed for outdoor use
• Wide operating range - -35°C to +85°C
• Wirepas mesh - Reliable 2.4 GHz wireless connectivity

Primary Use Cases

Parking Space Monitoring

• Real-time parking availability
• EV charging point occupancy
• Space utilization analytics
• Smart parking guidance

Loading Dock Monitoring

• Dock occupancy status
• Logistics optimization
• Warehouse operations
• Fleet management

General Area Monitoring

• Change detection in observed zones
• Access control triggers
• Safety zone monitoring
• Equipment placement verification

How It Works

60GHz Pulsed Coherent Radar:

1. Sensor emits 60GHz radio wave signal
2. Measures return time to calculate distance
3. Analyzes signal strength
4. Detects changes in observed area

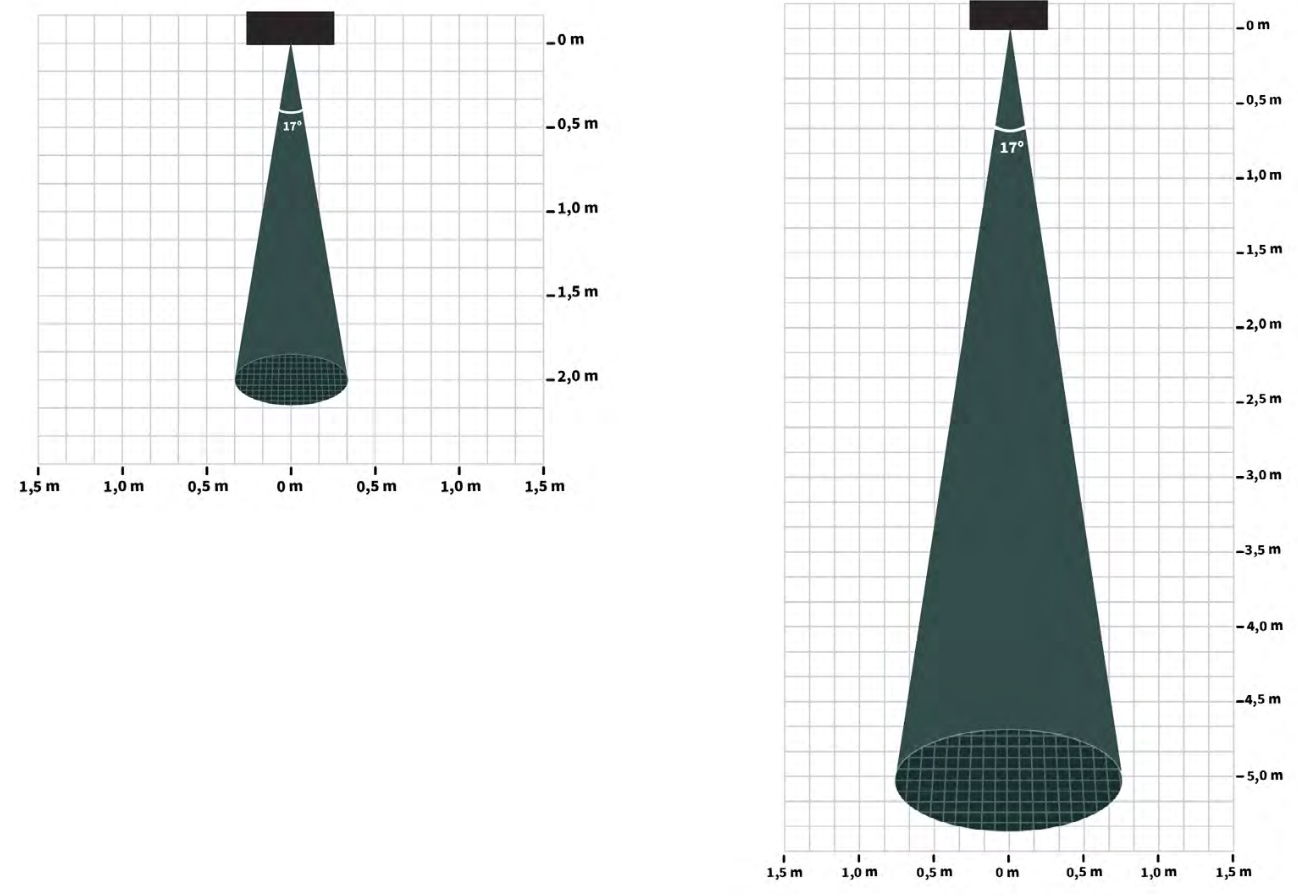

Detection Capability:

• Measurement range: 10 cm - 10 m
• Sensing area: 17-degree cone (region of interest)
• Default parking: 2 meters
• Default loading dock: 5 meters

Quick Start

1. Install sensor - Mount on wall, pole, or ceiling
2. Configure distance - Set sensing range for your application
3. Monitor status - View occupancy data in Haltian IoT Studio
4. Optimize settings - Adjust reporting intervals if needed

Installation Advantages

✅ No expensive drilling operations
✅ Cost-efficient and non-interruptive
✅ Built for tough outdoor environments
✅ Interference-free 60GHz operation
✅ Rigorously tested military-grade ruggedness

Technical Highlights

Environmental Specifications

• Operating temperature: -35°C to +85°C
• IP rating: IP68 (fully waterproof)
• Ruggedness: MIL-STD-810H (vibration, shock, UV, extreme temperatures, freezing rain)

Power and Battery

• Battery: Thionyl chloride lithium 19Ah (non-user-replaceable)
• Battery life: Up to 10 years

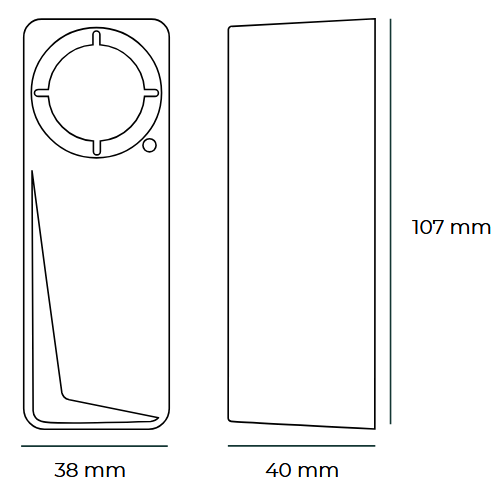

• Weight: 166g

Connectivity

• Network: Wirepas Mesh 2.4 GHz
• Range: 20-40m indoor, up to 100m line of sight
• Radio sensitivity: -95 dBm (BTLE)

Default Configurations

Parking Use Case

• Check occupancy: Every 30 seconds
• Report status: On change + hourly heartbeat
• Battery report: Every 24 hours
• Sensing distance: 2 meters

Loading Dock Use Case

• Check occupancy: Every 60 seconds
• Report status: On change + hourly heartbeat
• Battery report: Every 24 hours
• Sensing distance: 5 meters

Documentation

• Installation Guide - Wall, pole, ceiling mounting methods
• Operation Guide - Occupancy monitoring and data interpretation
• Configuration Guide - Sensing distance and interval customization
• Specifications - Complete technical details and certifications
• Troubleshooting - Common issues and solutions

Business Benefits

Reduced management costs:

• Eliminate manual parking oversight
• Automate loading dock status tracking
• Real-time visibility without personnel

Optimized space usage:

• Data-driven capacity planning
• Identify underutilized areas
• Improve traffic flow

Enhanced user experience:

• Real-time availability information
• Reduced parking search time
• EV charging point visibility

Support

For assistance with Haltian RADAR:

• Email: support@haltian.com
• Documentation: Review guides in this section
• Custom configurations: Contact support for specific applications

Next Steps:

1. Read the Installation Guide to get started
2. Review Operation Guide for monitoring and data interpretation
3. See Configuration Guide for customization options
